Huepar 3x360 3d laser level green Cross Line Laser Self Leveling 147ft 45m large Power 903CG

£199.99

Product information

Description

General description

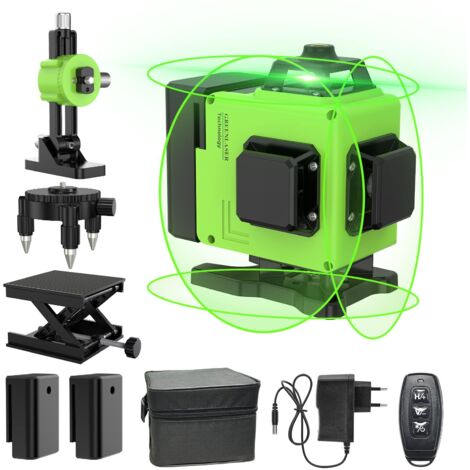

The Huepar 3x360 3D Laser Level is a high-performance cross line laser designed for precision leveling tasks. Utilizing Japan's Sharp green laser technology, it offers a brightness that is twice that of traditional red lasers, ensuring clear visibility even in bright outdoor conditions. This compact and practical tool features three laser windows, each capable of projecting four laser lines, resulting in a total of 12 laser lines for comprehensive coverage.

Technical specifications

  • Laser Beam Color: Green
  • Type: 12 Lines Laser
  • Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW
  • Laser Wavelength: 510 nm
  • Leveling Accuracy: ±3mm/10m
  • Leveling/Compensation Range: 4°±1°
  • Working Distance (Line): 45m, up to 60m with laser receiver
  • Operating Time: 4 hours with all laser beams on
  • Spread Coverage: H360°/ V360° / V360° (3*360°)
  • Power Source: Li-ion battery
  • IP Rating: IP54, waterproof, dustproof, and shockproof
  • Operation Temperature Range: 14℉- 122℉ (-10℃-＋50℃)
  • Storage Temperature Range: -4℉- 158℉ (-20℃-＋70℃)
  • Size: 8.9*6.5*9.1cm (3.5”x3.58”x2.56”)

    • Compatibility and accessories

  • Includes: 1 X Huepar 903CG laser level
  • 1 X Magnetic pivoting base
  • 1 X Green laser target card
  • 1 X Cloth case
  • 1 X English User's Manual
  • 1 X Lithium battery
  • 1 X Battery charger

    • Installation

  • Features two mounting nuts with 1/4" and 5/8" threads for versatile mounting options.
  • Can be secured to a bracket or tripod for enhanced stability.
  • Can also be placed on a regular surface, but securing it is recommended for accuracy.

    • Usage

  • Self-leveling within a range of ±4° when the pendulum is unlocked.
  • Laser lines and main indicator will flash if the unit is used outside of the leveling range.
  • Always keep the pendulum in the Off position when not in use to protect the instrument.

    • Other information

  • Magnetic base included for easy attachment to metal surfaces.
  • Designed to withstand vibrations and impacts during transportation.

    • Features

    • Material
      Acrylonitrile butadiene styrene (ABS)
    • Light colour
      Green
    • Range
      45 m
    • Laser shape
      Cross
    • Origin
      Made in China
