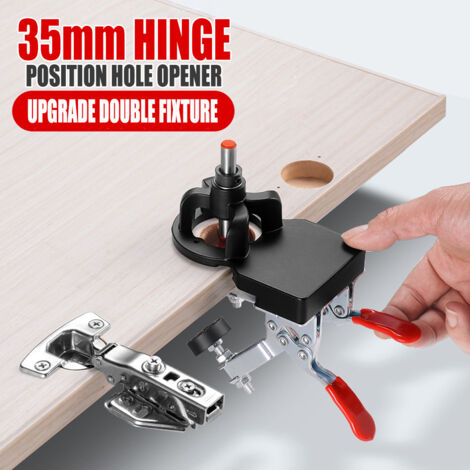

35mm Drilling Jig, Door Cabinet Hinge Jig, Cabinet Hinge Punch Locator, Three-Stage Drill Guide Tool for DIY Door Cabinet

~~£85.49~~

Product information

Description

General description

The 35mm Drilling Jig is a versatile tool designed for precise drilling of door cabinet hinges. It features a double clamp design for secure operation and a rubber print head that protects painted surfaces. This jig is ideal for DIY enthusiasts looking to achieve accurate hinge placements.

Technical specifications

Clampable plate thickness: 15-25 mm

Opening depth: 10-15 mm

Adjustment range for hole edge: 3-7 mm

Total height of drill guides: 2 cm

Fixed hole distance: 48 mm

Depth of edge banding groove: 2 mm

Installation

Use the tools provided with the locator to drill positioning holes.

Positioning can also be done directly using the hinge holes without being limited to hole spacing.

Usage

Adjust the clamp by loosening the screw for easy use.

Utilize the three bearing drilling sleeves for enhanced drilling accuracy.

Features

Brand
GOTRAYS
Length
6 cm
Width
3.5 cm
Height
2 cm
Material
Stainless steel
